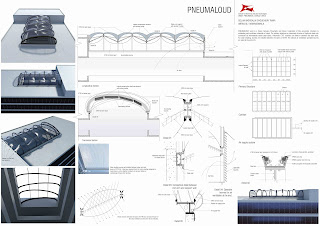

In my OM01 pneumatic assignment I have presented an idea of Pneumaloud. PNEUMALOUD word is a fusion between Pneumatic and Cloud. Inspiration of this pneumatic structure is undulating and curvilinear character of cloud. The primary structure is comprised of series of rhythmic steel arch
connected by intermediate lateral steel tubes. Pneumatic ETFE cushions are fitted in between the steel arch. For solar shading, louvres are installed between the layers of ETFE. For internal air ventilation operable louvres are used at the end arch.
connected by intermediate lateral steel tubes. Pneumatic ETFE cushions are fitted in between the steel arch. For solar shading, louvres are installed between the layers of ETFE. For internal air ventilation operable louvres are used at the end arch.
OM01 Pneumatic Structures
